MC_MoveAdditive (FB)

FUNCTION_BLOCK MC_MoveAdditive

This function block commands a controlled motion of a specified relative distance additional to the most recent commanded position in the discrete motion state.

The most recent commanded position may be the result of a previous MC_MoveAdditive motion which was aborted. If the function block is activated in the Continuous Mode the specified relative distance is added to the actual position at the time of the execution.

Example

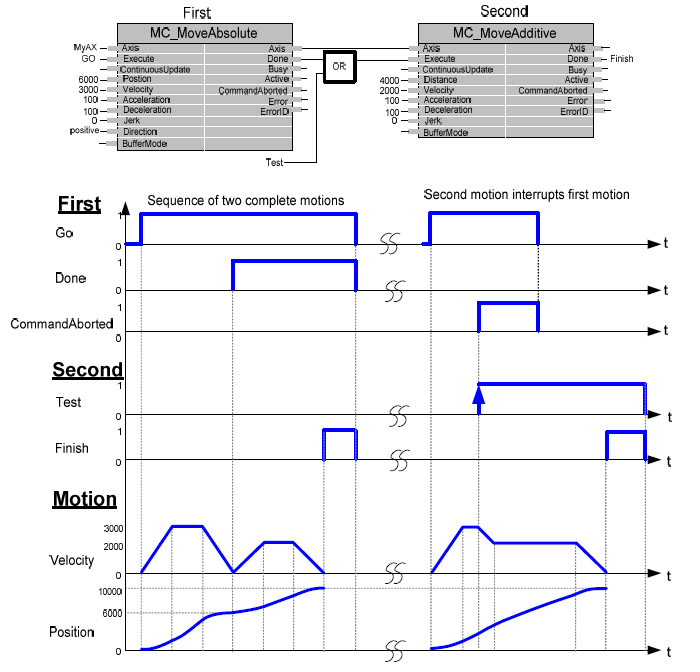

Examples of the combination of two function blocks while the axis is in state Discrete Motion

1. The left part of timing diagram illustrates the case if the second function block is called after the first one. If the first one reaches the commanded distance 6000 (and the velocity is 0) then the output “Done” causes the second function block to move to the distance 10000.

2. The right part of the timing diagram illustrates the case if the second move function blocks starts the execution while the first function block is still executing. In this case the first motion is interrupted and aborted by the test signal during the constant velocity of the first function block. The second function block adds on the previous commanded position of 6000 the distance 4000 and moves the axis to the resulting position of 10000

InOut:

Scope	Name	Type	Comment
Input	Execute	BOOL	Starts the function block at rising edge
	Distance	LREAL	[u] = Technical unit, Relative distance for the motion. Range: Maximum range is 16#7FFFFFFF in increments, if configured in units, range will be limited to equivalent of 16#7FFFFFFF increments
	Velocity	LREAL	[u/s] Value of the maximum velocity (not necessarily reached). Range: >0
	Acceleration	LREAL	[u/s°°2] Value of the acceleration (increasing energy of the motor). Range: >0. If value = 0, Acceleration will be equal to parameter paraMaxAccelerationAppl.If value > 0 and <= 1,Acceleration will be limited to 1.
	Deceleration	LREAL	[u/s°°2] Value of the deceleration (decreasing energy of the motor). Range: >0. If value = 0, Deceleration will be equal to parameter paraMaxDecelerationAppl.If value > 0 and <= 1,Deceleration will be limited to 1.
	Jerk	LREAL	[u/s°°3] Value of the Jerk. Range: >=0
	BufferMode	MC_BufferMode	Not supported, default mcABORTING used
Output	Done	BOOL	Shows the status of the function block. Done = TRUE if the execution is finished
	Busy	BOOL	The function block is not finished
	Active	BOOL	Indicates that the function block has control on the axis
	CommandAborted	BOOL	Command is aborted by another command from other PLCopen function block
	Error	BOOL	Signals that error has occurred within function block
	ErrorID	ERROR_ID	Error identification. For error details refer to Enumeration ERROR_ID
Inout	Axis	Axis_Ref	Reference to axis
