CS31 bus connections

The CS31 bus is connected through the terminal unit with the terminals 1.0 ... 1.7. The end-of-line resistor can also be activated by using external wire jumpers.

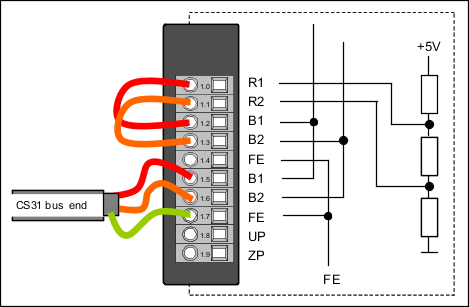

Fig. 224: CS31 communication interface module at the end of the CS31 bus (end-of-line resistor activated)

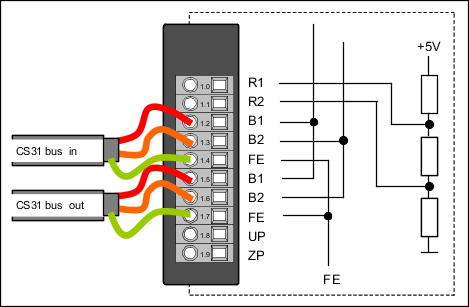

Fig. 225: CS31 communication interface module in the middle of the CS31 bus (end-of-line resistor not activated)

Details on CS31 wiring is described seperately .
