General restrictions

Restrictions for the available function blocks

  • As buffered mode, MC_Aborting is realized as a default. This does NOT mean that the axis stops when another movement is started while an ongoing movement is still active. It means instead that the new movement will take control immediately and change the velocity to its own velocity by using its own acceleration or deceleration.

  • The buffered mode MC_Buffered could be reached with using the axis state StandStill as enable signal for the Execute of the next block.

  • From the Extended Inputs and Outputs at the function blocks, the following are not realized:

    • BufferedMode: The realization just supports the MC_Aborting mode.

    • The following Outputs at ReadStatus are not supported: ConstantVelocity, Accelerating and Decelerating.

    • TorqueLimit for Homing function blocks.

general_restrictions_centralized1
general_restrictions_centralized2

MC_Aborting Mode

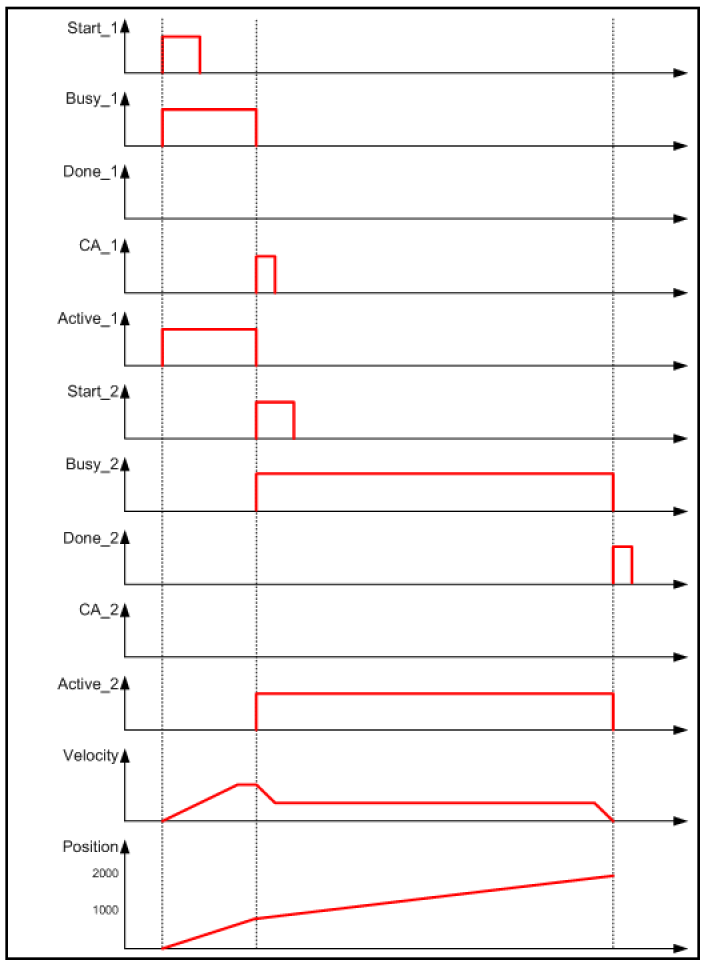

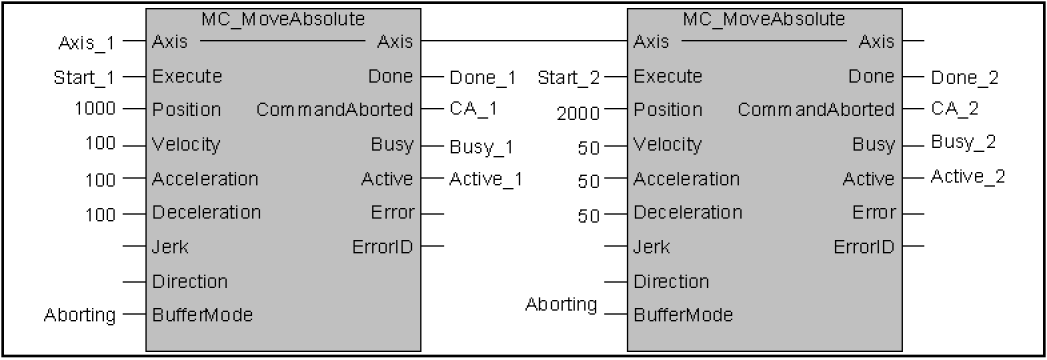

The diagram shows the behavior with BufferMode MC_Aborting, which is the only available BufferMode. When the second Block is activated, it will take control and will continue on its own velocity. The velocity is changed by using the acceleration value from the second function block. The movement will not be stopped in between. The first function block shows CommandAborted when the second function block is activated.

MC_Buffered

A behavior according to BufferMode MC_Buffered could be reached by using the Done output from the first function block to enable the Execute of the second function block.
