Input/Output Variable (VAR_IN

A ‎VAR_IN_OUT‎ variable is an input/output variable, which is part of a POU interface and serves as a formal pass-by-reference parameter.

Syntax declaration

<keyword> <POU name>
VAR_IN_OUT
	<variable name> : <data type> ( := <initialization value> )? ;
END_VAR
<keyword> : FUNCTION | FUNCTION_BLOCK | METHOD | PRG

You can declare an input/output variable in the ‎VAR_IN_OUT‎ declaration section in the POUs ‎PRG‎, ‎FUNCTION_BLOCK‎, ‎METHOD‎, or ‎FUNCTION‎. As an option, a constant of the declared data type can be assigned as an initialization value. The ‎VAR_IN_OUT‎ variable can be read and written.

Usage

Call: When a POU is called, the formal ‎VAR_IN_OUT‎ variable receives the actual variable (pass-by-reference variable) as the argument. At runtime, no copies are generated when parameters are passed. Instead, the formal variable receives a reference to the actual variable passed remotely. The referential variables contain a memory address internally as a value to the actual value (pass as pointer, call-by reference). It is not possible to specify a constant (literal) or a bit variable directly as an argument.
Read/write access within the POU: If the variable is written to within the POU, then this affects the passed variable. When the POU is exited, any performed changes are retained. This means that a POU uses its ‎VAR_IN_OUT‎ variables just like the calling POU uses its variables. Read access is always permitted.
Read/write access remotely: ‎VAR_IN_OUT‎ variables cannot be directly read or written remotely via ‎<function block instance name>.<variable name>‎. This works only for ‎VAR_INPUT‎ and ‎VAR_OUTPUT‎ variables.
Passing string variables: If a string variable is passed as an argument, then the actual variable and the formal variable should have the same length. Otherwise the passed string can be manipulated unintentionally. This problem does not occur in the case of ‎VAR_OUTPUT CONSTANT‎ parameters.
Passing bit variables: A bit variable cannot be passed directly to a ‎VAR_IN_OUT‎ variable because it needs an intermediate variable.
Passing properties: Not permitted.

If a string is passed as a variable or a constant to a formal ‎VAR_IN_OUT CONSTANT‎ variable, then the string is automatically passed completely. You do not have to check the string length.

See also

Chapter ⮫ “Transfer variable ‎VAR_IN_OUT CONSTANT‎”

Example

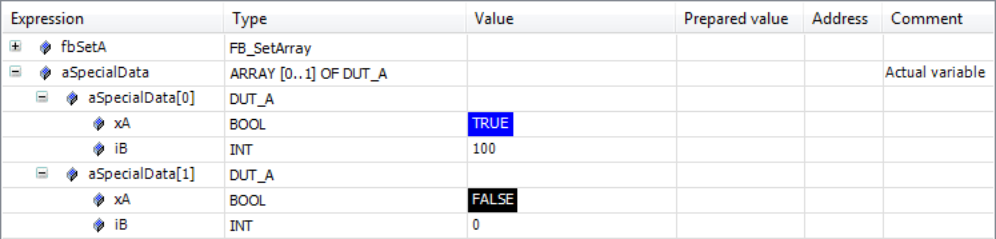

Passing arrays

TYPE DUT_A :
STRUCT
	xA: BOOL;
	iB: INT;
END_STRUCT
END_TYPE

FUNCTION_BLOCK FB_SetArray
VAR_IN_OUT
	aData_A : ARRAY[0..1] OF DUT_A; // Formal variable
END_VAR
aData_A[0].xA := TRUE;
aData_A[0].iB := 100;

PROGRAM PLC_PRG
VAR
	fbSetA : FB_SetArray;
	aSpecialData : ARRAY[0..1] OF DUT_A; // Actual variable
END_VAR
fbSetA(aData_A := aSpecialData);

Passing strings

{attribute 'qualified_only'}
VAR_GLOBAL
	g_sDEV_STATUS : STRING(25) := 'Device_A';
END_VAR

FUNCTION_BLOCK FB_SetStatus
VAR_IN_OUT
	sDeviceStatus : STRING(25); // Formal parameter
END_VAR
sDeviceStatus := CONCAT(sDeviceStatus, ' Activ');

PROGRAM PLC_PRG
VAR
	fbDoB : FB_SetStatus;
END_VAR
fbDoB(sDeviceStatus := GVL.g_sDEV_STATUS); //Call with actual parameter

The variable ‎sDeviceStatus‎ is part of the POU interface of ‎FB_B‎. When calling ‎fbDoB‎, first a device name is assigned to the string and then the string is manipulated.

Passing bit variables

VAR_GLOBAL
	xBit0 AT %MX0.1 : BOOL;
	xTemp : BOOL;
END_VAR

FUNCTION_BLOCK FB_DoSomething
VAR_INPUT
	xIn : BOOL;
END_VAR
VAR_IN_OUT
	xInOut : BOOL;
END_VAR
IF xIn THEN
	xInOut := TRUE;
END_IF

PROGRAM PLC_PRG
VAR
	xIn : BOOL;
	DoSomething_1  : FB_DoSomething;
	DoSomething_2  : FB_DoSomething;
END_VAR

// The following line of code causes a compiler error:
// C0201: Typ 'BIT' is not equal to type 'BOOL' of VAR_IN_OUT 'xInOut'
DoSomething_1(xIn := xIn, xInOut := xBit0);

// Workaround
xTemp := xBit0;
DoSomething_2(xIn := xIn, xInOut := xTemp);
xBit0 := xTemp;

The program calls the function block instances ‎DoSomething_1‎ and ‎DoSomething_2‎. As a result of the direct assignment of the bit variable ‎xBit0‎ to the ‎VAR_IN_OUT‎ input, a compiler error is generated when the ‎DoSomething_1‎ instance is called. In contrast, calling the ‎DoSomething_2‎ instance with the assignment of an intermediate variable is correct code.

Transfer variable ‎VAR_IN_OUT CONSTANT‎

A ‎VAR_IN_OUT CONSTANT‎ variable serves as a constant pass-by-reference parameter, to which a ‎STRING‎ or ‎WSTRING‎ type variable or constant (literal) can be passed. The parameter can be read, but not written. Passing of properties is not permitted.

Syntax declaration

<keyword> <POU name>
VAR_IN_OUT CONSTANT
	<variable name> : <data type>; // formal parameter
END_VAR
<keyword> : FUNCTION | FUNCTION_BLOCK | METHOD | PRG

‎VAR_IN_OUT CONSTANT‎ variables are declared without assigning an initialization value.

Usage

When calling the POU, a ‎STRING‎ or ‎WSTRING‎ constant variable or literal can be passed. Consequently, write access is not permitted.
Passing parameters of a string constant: The string length of the constants can be any size, and the string length does not depend on the string length of the ‎VAR_IN_OUT CONSTANT‎ variables.

If the “Replace constants” option is selected in “Project Project Settings” in the “Compile Options” category, then passing the parameters of a constant with basic data type or a constant variable with basic data type generates a compiler error.

The variable is supported in compiler version >= 3.5.2.0.

Example

Passing parameters of string constants and string variables

FUNCTION funManipulate : BOOL
VAR_IN_OUT
	sReadWrite : STRING(16); (* Can be read or written here in POU *)
	dwVarReadWrite : DWORD; (* Can be read or written here in POU *)
END_VAR
VAR_IN_OUT CONSTANT
	c_sReadOnly : STRING(16); (* Constant string variable can only be read here in POU *)
END_VAR

sReadWrite := 'String_from_POU';
dwVarReadWrite := STRING_TO_DWORD(c_sReadOnly);

PROGRAM PRG_A
VAR
	sVarFits : STRING(16);
	sValFits : STRING(16) := '1234567890123456';
	dwVar: DWORD;
END_VAR

// The following line of code causes the compiler error C0417:
// C0417: VAR_IN_OUT parameter 'sReadWrite' needs a variable with write access as input.
funManipulate(sReadWrite:='1234567890123456', c_sReadOnly:='1234567890123456', dwVarReadWrite := dwVar);

//  Correct code
funManipulate(sReadWrite := sValFits, c_sReadOnly := '23', dwVarReadWrite := dwVar);
funManipulate(sReadWrite := sVarFits, c_sReadOnly := sValFits, dwVarReadWrite := dwVar);

In the code, strings are passed to the ‎funManipulate‎ function via different ‎VAR_IN_OUT‎ variables. When passing a string literal, a compiler error is output to a ‎VAR_IN_OUT‎ variable. When passing a constant variable to a ‎VAR_IN_OUT CONSTANT‎ variable, correct code is generated even for passing string variables.
