Exporting device list to CSVdl-permalink__symbolPermalink

To export a CSV device list, proceed as follows:

  1. In the device tree, right-click “PLC  Export  Device list (CSV)”.

  2. Select the desired location in the file system to save the Device list (CSV).

    If the CSV device list is exported successfully, a success message is displayed.

  3. In the Export dialog, click the link to open the exported CSV device list.

    The exported CSV device list consists of all devices connected to the PLC that is exported. Each row represents a device with its device type and hierarchy information.

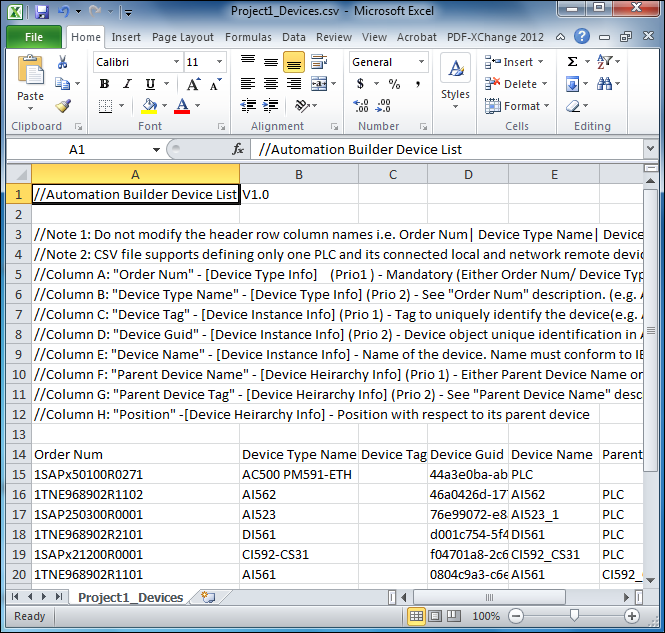

    32 CSV device list
