Creating a new project dl-permalink__symbolPermalink

  1. Select “File  New Project”.

  2. Select “AC500 project”, enter a project name and specify the storage location for the new project.

    With “Empty project” a project without a PLC is created.

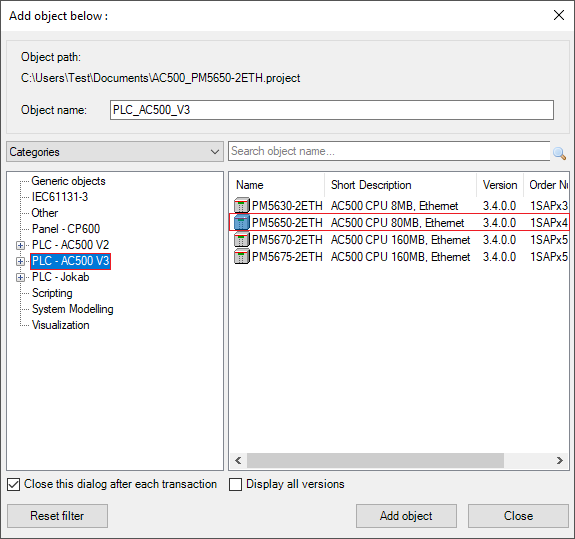

  3. Select the device type for the new project and click [Add object].

    AC500_V3_Select_PM5650-2ETH

    A new project is created and can be configured.
