Depending on the configuration for the input channels of the onboard I/O from the processor module different functionality are possible which must be used together with the dedicated function block of the user program.
|
Functionality to be realized |
Processor module type |
Digital input channels |

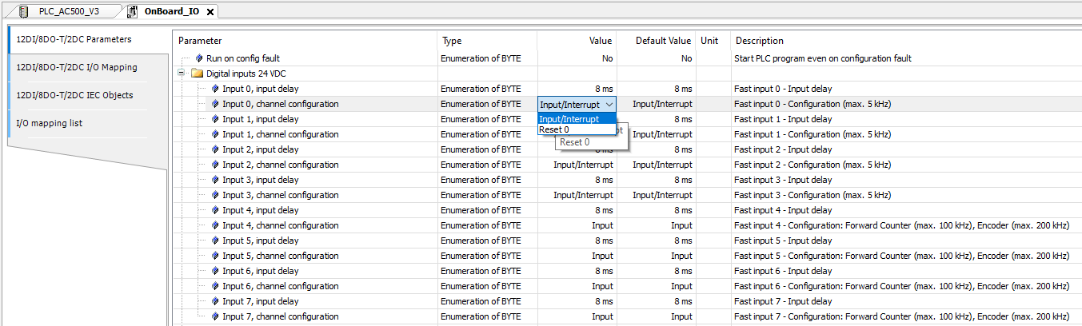

Configuration of the channel to be selected in Automation Builder |
Dedicated function block to be used in the user program |
Comments |
|---|---|---|---|---|---|
|
Interrupt inputs |
PM5012-x-ETH |
I0 … I3 |
Input/Interrupt |
OBIOInterruptInfo OBIOInterruptPara |
Up to 4 interrupt input channels can be used, the other inputs can be used for other purpose |
|
I4 ... I5 |
Not relevant for the functionality |
||||
|
PM5032-x-ETH, PM5052-x-ETH, PM5072-T-2ETH(W) PM5082-T-2ETH |
I0 … I3 |
Input/Interrupt |
OBIOInterruptInfo OBIOInterruptPara |
Up to 4 interrupt input channels can be used, the other inputs can be used for other purpose |
|
|
I4 … I11 |
Not relevant for the functionality |
