According to the processor module type, the digital outputs have several functionalities. To use them as digital output and as default configuration the following configuration is needed:
|
Functionality to be realized |
Processor module type |
Digital output channels |

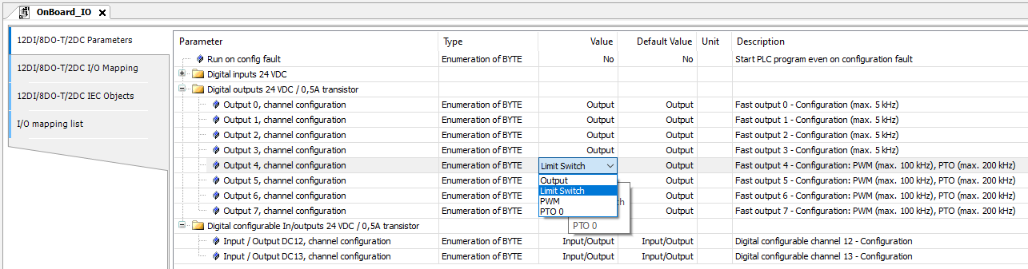

Configuration of the channel to be selected in Automation Builder |
Dedicated function block to be used in the user program |
Comments |
|---|---|---|---|---|---|
|
Digital Outputs |
PM5012-T-ETH |
O0 … O3 |
Output |
Not needed |
- |
|
PM5012-R-ETH |
NO0 ... NO1 |
||||
|
NO2 ... NO3 |
|||||
|
PM5032-T-ETH, PM5052-T-ETH, PM5072-T-2ETH(W) PM5082-T-2ETH |
O0 … O3 |
Output |
Not needed |
No other configuration needed |
|
|
O4 … O7 |
Output |
||||
|
C12 … C13 |
Input/Output |
||||
|
PM5032-R-ETH, PM5052-R-ETH |
NO0 ... NO2 |
Output |
Not needed |
No other configuration needed |
|
|
NO3 ... NO5 |
Output |
||||
|
C12 … C13 |
Input/Output |
