Processor modules with onboard interfaces:
-
PM5630-2ETH: processor module, memory 8 MB, with Ethernet support (onboard Ethernet) – 2 network interfaces RJ45, CAN and COM1 on the terminal base.
-
PM5650-2ETH: processor module, memory 80 MB, with Ethernet support (onboard Ethernet) – 2 network interfaces RJ45, CAN and COM1 on the terminal base.
-
PM5670-2ETH: processor module, memory 160 MB, with Ethernet support (onboard Ethernet) – 2 network interfaces RJ45, CAN and COM1 on the terminal base.
-
PM5675-2ETH: processor module, 160 MB, 8 GB flash disk, with Ethernet support (onboard Ethernet) – 2 network interfaces RJ45, CAN and COM1 on the terminal base.
-
XC version for use in extreme ambient conditions available

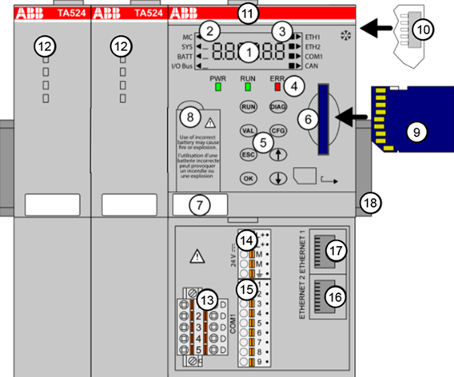

1
6 7-segment state displays with backlight
2
"Triangle" displays for "item"
3
"Square" displays for "state"
4
3 state LEDs
5
8 function keys
6
Slot for memory card
7
Label
8
Compartment for TA521 - adapter cable with button cell or TA522 - adapter for CR2450 battery
9
Memory card
10
I/O bus for connection of I/O modules
11
Slot for processor module (processor module mounted on terminal base)
12
Slots for communication modules (multiple, depending on terminal base; unused slots must be covered with TA524)
13
Interface for CAN (5-pin terminal block, removable)
14
Power supply (5-pin terminal block, removable)
15
Serial interface COM1 (9-pin terminal block, removable)
16
RJ45 female connector for ETHERNET1 connection
17
RJ45 female connector for ETHERNET2 connection
18
DIN rail
