Configuration and programmingSystem technologySystem technology of CPU and overall system...Simple motionSystem technologyUse the onboard I/Os as pulse-train output (PTO)200 kHz frequency (max. 2 pulse-train output using pulse-train output hardware channels)
and simple motion “OBIOMotionPTO” function block
Permalink

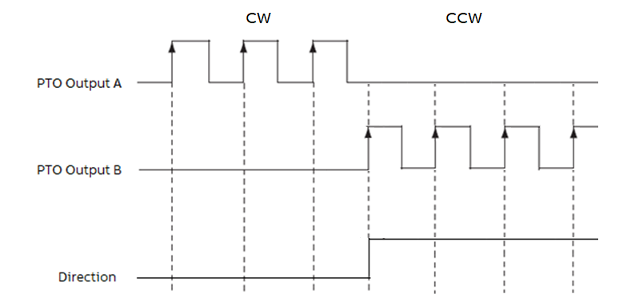

If the input “CwCCw” of the “OBIOMotionPTO” is set to FALSE, the pulse-train output channel B is toggled based on the direction.
If the input “CwCCw” of the “OBIOMotionPTO” is set to TRUE. The pulse-train output channel A will lead by 90° or pulse-train output channel B will lead by 90° depending on direction.
