FM566 - Strain gauge moduledl-permalink__symbolPermalink

  • 2 configurable analog SG (strain gauge) inputs (E0, I0 and S0; E1, I1 and S1) and 2 digital outputs (DO0, DO1) in 2 groups

  • Resolution: 24/28 bits under normal mode; 16/24 bits under oversampling mode

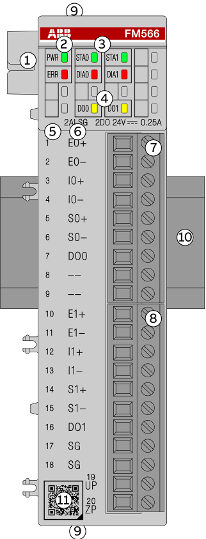

ILL_2025_FM566_Product Fig

1

I/O bus

2

1 green LED to display power supply, 1 red LED to display error

3

2 green LEDs to display the state of 2 input channels, 2 red LEDs to display the diagnosis of 2 input channels

4

2 yellow LEDs to display the state of 2 output channels

5

Terminal number

6

Allocation of signal name

7

Terminal block for SG channel signals (9-pin)

8

Terminal block for SG channel signals (11-pin)

9

2 holes for wall-mounting with screws

10

DIN rail

11

QR code for datasheet

  • Intended purpose
  • Functionality
  • Connections
  • I/O configuration
  • Parameterization
  • I/O Mapping
  • Diagnosis
  • State LEDs
  • Measuring ranges
  • Technical data
  • Dimensions
  • Ordering data
