FM565 - Strain gauge moduledl-permalink__symbolPermalink

  • 1 configurable analog SG (strain gauge) input (E, I and S) and 1 digital output (DO) in 1 group

  • Resolution: 24/28 bits under normal mode; 16/24 bits under oversampling mode

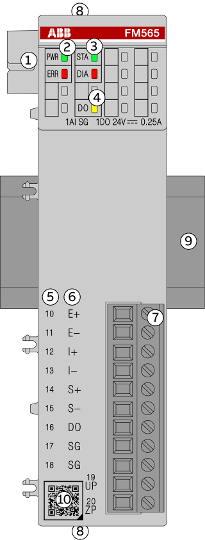

ILL_2025_FM565_Product Fig

1

I/O bus

2

1 green LED to display power supply, 1 red LED to display error

3

1 green LED to display the state of input channel, 1 red LED to display the diagnosis of input channel

4

1 yellow LED to display the state of output channel

5

Terminal number

6

Allocation of signal name

7

Terminal block for SG channel signals (11-pin)

8

2 holes for wall-mounting with screws

9

DIN rail

10

QR code for datasheet
