Configuration for AC500-eCo CPU
-
In the device tree right-click the “COM (<Empty>)” node under the “Interfaces” and select “Add object”.
-
Select the the “COM1” interface and confirm.
-

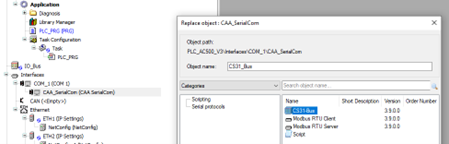

Right-click the node “CAA_SerialCom” and select “Add object”.
-
Select the “CS31-Bus” node and confirm.
Configuration for CPU
For the AC500-eCo V3 CPUs, an option board for RS485 serial interface TA5142-RS485(I) must be used. Depending on the AC500-eCo V3 CPU type several option boards will be available. Below each RS485 option board node a separate instance of the CS31 protocol can be configured.
-
In the device tree right-click an empty slot under the “Interfaces” node and select “Add object”.
-
Select an RS485 option board and confirm.
-
Right-click the option board and select “Add object”.
-
Select the “CS31-Bus” node and confirm.
Parameters
Double-click the “CS31_Bus” node to configure the parameters.
The following parameter is available for the CS31-bus.
|
Parameter |
Defauls value |
Value |
Description |
|---|---|---|---|
|
Run on config fault |
No |
No |
The PLC program is executed even if there are faults in configuration. |
|
Yes |
The PLC program is not executed if there are faults in configuration. |
