CI592-CS31 - Digital and analog inputs and outputsdl-permalink__symbolPermalink

  • 8 digital inputs 24 V DC

  • 8 configurable digital inputs/outputs 24 V DC

  • 4 analog inputs (resolution 12 bits plus sign)

  • 2 analog outputs (resolution 12 bits plus sign)

  • CS31 bus connection

  • Module-wise galvanically isolated

  • Fast counter

  • XC version for usage in extreme ambient conditions available

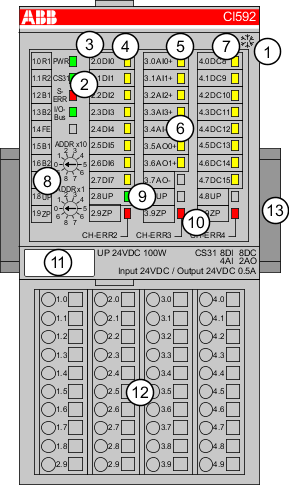

CI592-01

1

I/O bus

2

4 system LEDs

3

Allocation between terminal number and signal name

4

8 yellow LEDs to display the signal states of the digital inputs DI0 ... DI7

5

4 yellow LEDs to display the signal states of the analog inputs AI0 ... AI3

6

2 yellow LEDs to display the signal states of the analog outputs AO0 ... AO1

7

8 yellow LEDs to display the signal states of the configurable digital inputs/outputs DC8 ... DC15

8

2 rotary switches to set the module's address (00d ... 99d)

9

1 green LED to display the process voltage UP

10

3 red LEDs to display errors

11

Label

12

Terminal unit

13

DIN rail

Snowflake, 1_4

Sign for XC version

  • Intended purpose
  • Functionality
  • Connections
  • CS31 bus connections
  • Internal data exchange
  • I/O configuration
  • Addressing
  • Parameterization
  • Diagnosis
  • State LEDs
  • Measuring ranges
  • Technical data
  • Dimensions
  • Ordering data
