AO522 - Analog output moduledl-permalink__symbolPermalink

  • 8 channels configurable for voltage and current

  • Resolution: 16 bit including sign

  • Analog output signal ranges:

    • -10 V ... +10 V

    • 0 mA ... 20 mA

    • 4 mA ... 20 mA

  • Module-wise galvanically isolated

  • XC version available for use in extreme ambient conditions

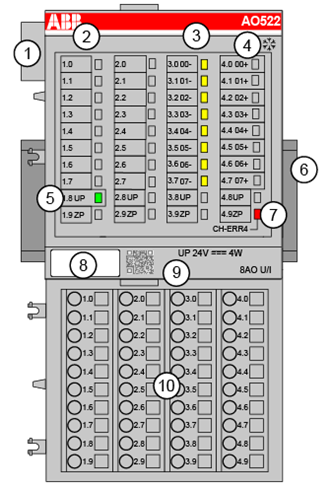

IG_2024_AO522_Product

1

I/O bus

2

Allocation between terminal number and signal name

3

Yellow LEDs to display the signal states of the channels

4

Snowflake, 1_4 Sign for XC version

5

1 green LED to display the state of the process supply voltage UP

6

DIN rail

7

1 red LED to display errors

8

Label

9

QR code for ABB access

10

Terminal unit

Consider the safety instructions

Consider the safety instructions

In the description, special attention must be paid to designs using galvanic isolation, grounding and EMC measures for the reasons stated. Consider the safety instructions for AC500 product family.

  • Intended use
  • Connections
  • Parameterization
  • Diagnosis
  • State LEDs
  • Representation of the signal ranges
  • Technical data
  • Dimensions
  • Ordering data
