AI564 - Analog input moduledl-permalink__symbolPermalink

  • 8 configurable thermocouple (TC)  / -80 mV ... +80 mV inputs (I0 ... I7) in 1 group

  • Resolution: 16 bits including sign

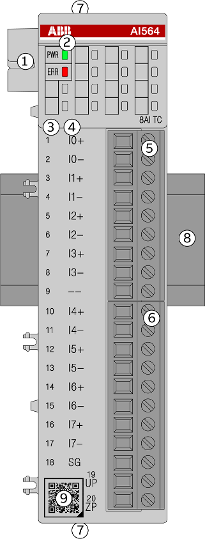

ILL_2025_AI564_Product Fig

1

I/O bus

2

1 green LED to display power supply, 1 red LED to display error

3

Terminal number

4

Allocation of signal name

5

Terminal block for input signals (9-pin)

6

Terminal block for input signals (11-pin)

7

2 holes for wall-mounting with screws

8

DIN rail

9

QR code for datasheet

  • Intended purpose
  • Functionality
  • Connections
  • I/O configuration
  • Parameterization
  • Diagnosis
  • State LEDs
  • Measuring ranges
  • Technical data
  • Dimensions
  • Ordering data
