字符串变量和别名允许使用属性 pragma。该属性的作用是,在监控过程中,变量值被标记为 UTF-8 格式后,将以 UTF-8 格式解码。
语法
{attribute 'monitoring_encoding' := 'UTF8'}

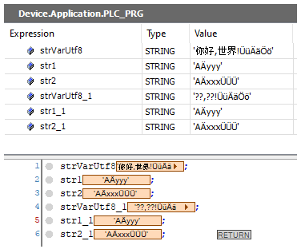

示例
PROGRAM PLC_PRG VAR {attribute 'monitoring.encoding' := 'UTF8'} strDat : STRING := 'abc'; attribute 'monitoring_encoding' := 'UTF-8'} strVarUtf8: STRING := UTF8#'你好,世界!ÜüÄäÖö'; {attribute 'monitoring_encoding' := 'UTF-8'} str1: STRING := UTF8#'AÄyyy'; {attribute 'monitoring_encoding' := 'UTF-8'} str2: STRING := UTF8#'AÄxxxÜÜÜ'; strVarUtf8_1: STRING := '你好,世界!ÜüÄäÖö'; str1_1: STRING := 'AÄyyy'; str2_1: STRING := 'AÄxxxÜÜÜ'; END_VAR
