Adding a global list of persistent/retain variables

A global list of persistent variables will be added with the standard definition for persistent variables "VAR RETAIN PERSISTENT" ⮫ “Retain Variable - RETAIN”⮫ “Persistent Variable - PERSISTENT”.

First steps:

  1. Expand the object path of your PLC

  2. After right click on “App” select “Add object” in the context menu.

    The window “Add object below: Application” appears.

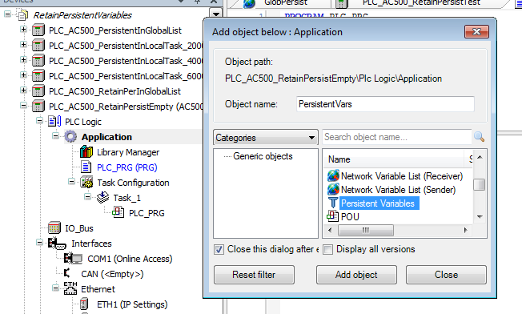

  3. Fig_10

    Select “Persistent Variables” and click [Add object].

The object name can be chosen freely. In the application it will be reused to reference the persistent variables.
