Attribute 'hide'

Using the pragma ‎{attribute 'hide'}‎ to hide variables and POUs does not have the desired effect in most cases. Instead, you should use the pragma ‎{attribute 'conditionalshow'}‎.

The pragma prevents the variables and POUs defined with it from being shown in the CODESYS user interface. As a result, you can intentionally hide these identifiers without restricting the access. This can be useful when you develop libraries.

Affected features:

Library management
Debugging
Input Assistant
Function "List components"
Monitoring
Symbol configuration

The variables or POUs defined with the pragma are neither visible in the Library Manager nor are they suggested in the Input Assistant or in the "List components" function. The pragma prevents those marked variables from being displayed in the symbol configuration. As a result, you cannot export these kinds of variables as symbols. The variables are also invisible in online mode, and therefore their values cannot be monitored. Moreover, you cannot use any debugging functionalities and you do not have any support when checking for bugs.

Syntax:

‎{attribute 'hide'} ‎

Insert location: For variables, above the line with the declaration of the variables. For POUs, in the first line.

If you, the application developer, know the exact instance path of the hidden POUs and variables, then you can access them in the code.

Example of hidden variable

The function block ‎FB_MyA‎ contains the attribute pragma ‎{attribute 'hide'}‎ to hide the local variable ‎xInvisibleIn‎.

FUNCTION_BLOCK FB_MyA
VAR_INPUT
	iInA : INT;
	{attribute 'hide'}
	xInvisibleIn : BOOL;
	xInit: BOOL;
END_VAR
VAR_OUTPUT
 	iOutA : INT;
END_VAR
VAR
	iCounter : INT;
END_VAR

Two instances of the function block ‎FB_MyA‎ are defined in the main program.

PROGRAM PLC_PRG
VAR
	fbMyA1, fbMyA2 : FB_MyA;
	xVar2 : BOOL;
	iVar1 : INT;
	iVar2 : INT;
END_VAR
fbMyA1(iInA := 1, xInit := TRUE, xInvisibleIn := TRUE, iOutA => iVar1);
fbMyA2(iInA := 1, xInit := TRUE, iOutA => iVar2);

When the input value for ‎fbMyA1‎ is implemented, the "List components" function, which opens when you type ‎fbMyA1.‎ (in the implementation part of ‎PLC_PRG‎), displays the variables ‎iInA‎, ‎xInit‎, and ‎iOutA‎, but not the hidden variable ‎xInvisibleIn‎.

Example of hidden library POU

‎FB_A‎ is a function block of the library ‎HiddenFunctionality‎ with the default namespace ‎HIDDEN‎. To hide the identifier and the POU code from application developers, begin the declaration of the POU with the attribute pragma ‎{attribute 'hide'}‎. To hide the subordinate POUs (actions, methods, properties, and transitions) in the same way, also begin their declarations with ‎{attribute 'hide'}‎.

{attribute 'hide'}
FUNCTION_BLOCK FB_A
VAR_INPUT
END_VAR
VAR_OUTPUT
END_VAR
VAR
	iA : INT;
	iCount : INT;
	iInvisible : INT;
END_VAR

{attribute 'hide'}
METHOD METH_Count : INT
VAR_INPUT
END_VAR
iCount := iCount + 1;

{attribute 'hide'}
METHOD METH_Invisible : BOOL
VAR_INPUT
END_VAR
iInvisible := iInvisible + 1;

{attribute 'hide'}
PROPERTY PUBLIC prop_iA : INT

For you as the application developer, all POUs are invisible. You can use them only if you know the instance path.

PROGRAM PLC_PRG
VAR
	fbHidden : HIDDEN.FB_A; // Hidden function block from library HiddenFunctionality
	iCounter : INT;
END_VAR
fbHidden.METH_Invisible();
iCounter := fbHidden.iInvisible;

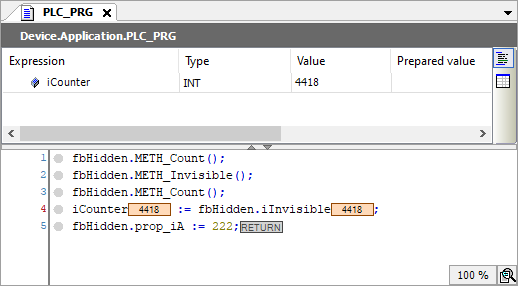

In online mode, no monitoring is performed.

With the pragma ‎hide_all_locals‎ you can hide all local variables of a POU.
