Data Type '_

Vector operations are supported natively only on 64-bit processors and offer a performance advantage only on these processors. The data sheet of the controller provides information about the processor used on the controller.

Currently, vector operations on the x86/64-bit platforms with SSE2 and ARM64 with NEON are supported natively. On all other platforms, vector operations are translated into individual statements. For example, vector addition is then executed with multiple single addition operations.

The command set extensions of the processors are SIMD extensions. SIMD (Single Instruction, Multiple Data) describes a computer architecture in which multiple data sets of the same type are processed simultaneously in parallel and therefore faster with one command call. In vector operations, for example, 4 pairs of numbers can then be added at the same time.

Syntax

<variable name> :  __VECTOR[ <vector size> ] OF <element type> ( := <initialization> )? ;

<vector size> : 1 |2 | 3 | 4 | 5| 6 | 7| 8
<element type> : REAL | LREAL
// (...)? : Optional

A vector data type is an array of floating-point numbers with a maximum of 8 elements. The operators ‎__vc<operator name>‎ are available for this data type. You can use these to implement vector operations without additional function calls.

Syntax for index access

<variable name>[ <index> ]
<index> : 0 | 1 | 2| 3 | 4 | 5| 6 | 7

When indexing a vector variable, you can access a single element of the vector. The index starts at 0 and goes until <vector size> - 1.

Example

PROGRAM PLC_PRG
VAR
	vcA : __VECTOR[3] OF REAL;
END_VAR

vcA[0] := 1.1;
vcA[1] := 2.2;
vcA[2] := 3.3;

Determining the optimal vector size

Use the optimal vector size depending on your target system as the vector size in order to program the most efficient code possible.

For target systems whose computer architecture is generally suitable for vector processing, we do not recommend using vectors of arbitrary size. There is an optimal vector size depending on the type of data processing of the processor. Vectors that are declared with this array size are processed as quickly as possible. Vectors that are declared as a larger array do not have an advantage in speed. Vectors that are declared as smaller arrays do not take full advantage of the processor's capabilities.

You can query the optimal size at runtime. You can find the information in the constants ‎Constants.vcOptimalREAL‎ (for vectors with ‎REAL‎ elements) and ‎Constants.vcOptimalLREAL‎ (for vectors with ‎LREAL‎ elements). The constants have the ‎LREAL‎ data type. If a constant returns the value ‎1‎ as the optimal value, then this means that accelerated vector processing is not available for the target system.

Example

PROGRAM PLC_PRG
VAR
	iOVS_REAL : INT; // Optimal vector size for REAL elements
	iOVS_LREAL : INT; // Optimal vector size for LREAL elements
END_VAR

iOVS_REAL := Constants.vcOptimalREAL;
iOVS_LREAL := Constants.vcOptimalLREAL;

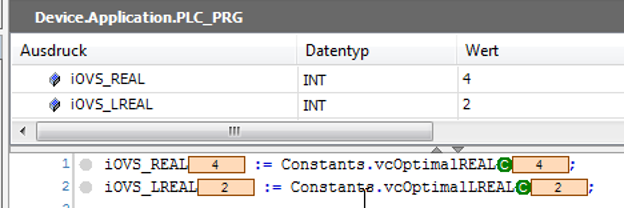

An application that is loaded on the CODESYS Control Win V3 x64 target system returns the following values at runtime:

Operator __VCADD

The operator calculates the sum of two vectors.

Syntax

<vector variable> := <1st vector operand> __VCADD <2nd vector operand>;

Example of addition

FUNCTION_BLOCK FB_ADD
VAR
	vcA : __VECTOR[3] OF REAL := __VCSET_REAL(3, 3, 3);
	vcB : __VECTOR[3] OF REAL := __VCSET_REAL(1, 2, 3);
	vcResult : __VECTOR[3] OF REAL;
END_VAR


vcResult := vcA __VCADD vcB;

Operator __VCSUB

The operator calculates the difference between two vectors.

Syntax

<vector variable> := <vector minuend> __VCSUB <vector subtrahend>;

Example of subtraction

FUNCTION_BLOCK FB_SUB
VAR
	vcA : __VECTOR[3] OF REAL := __VCSET_REAL(3, 3, 3);
	vcB : __VECTOR[3] OF REAL := __VCSET_REAL(1, 2, 3);
	vcResult0 : __VECTOR[3] OF REAL;
	vcResult1 : __VECTOR[3] OF REAL;
END_VAR

vcResult0 := vcA __VCSUB vcB;
vcResult1 := vcB __VCSUB vcA;

Operator __VCMUL

The operator calculates the product of two vectors or a scalar (floating-point number) and a vector.

Syntax

<vector variable> := <1st vector operand> __VCMUL <2nd vector operand> | <scalar operand> __VCMUL <vector operand> | <vector operand> __VCMUL <scalar operand> ;

Example of multiplication

FUNCTION_BLOCK FB_MUL
VAR
	rScalar : REAL := 1.1;
	vcA : __VECTOR[3] OF REAL;
	vcB : __VECTOR[3] OF REAL;
	vcResult0 : __VECTOR[3] OF REAL;
	vcResult1 : __VECTOR[3] OF REAL;
	vcResult2 : __VECTOR[3] OF REAL;
END_VAR

vcResult0 := vcA __VCMUL vcB;
vcResult1 := rScalar __VCMUL vcB;
vcResult2 := vcA __VCMUL 3.3;

Operator __VCDIV

The operator calculates the quotient of two vectors or a vector and a scalar.

Syntax

<vector variable> := <vector dividend> __VCDIV <vector divisor> | < vector dividend> __VCMUL <scalar divisor> ;

Example of division

FUNCTION_BLOCK FB_DIV
VAR
	iScalar : INT := 3;
	rScalar : REAL := 1.5;
	vcA : __VECTOR[3] OF REAL := __VCSET_REAL(3, 3, 3);
	vcB : __VECTOR[3] OF REAL := __VCSET_REAL(1, 2, 3);
	vcResult0 : __VECTOR[3] OF REAL;
	vcResult1 : __VECTOR[3] OF REAL;
	vcResult2 : __VECTOR[3] OF REAL;
END_VAR

vcResult0 := vcA __VCDIV vcB;
// ERROR CODE vcResult1 := rScalar __VCDIV vcB;
// ERROR CODE vcResult1 := iScalar __VCDIV vcB;
// ERROR CODE vcResult1 := 3.3 __VCDIV vcB;
vcResult2 := vcA __VCDIV 1.5;
vcResult2 := vcA __VCDIV iScalar;
vcResult2 := vcA __VCDIV rScalar;

Operator __VCDOT

The operator calculates the dot product (scalar product) of two vectors.

Syntax

<scalar variable> := <1st vector operand> __VCDOT <2nd vector operand> ;

Example of a dot product

FUNCTION_BLOCK FB_DOT
VAR
	rResult : REAL;
	vcA : __VECTOR[3] OF REAL := __VCSET_REAL(3, 3, 3);
	vcB : __VECTOR[3] OF REAL := __VCSET_REAL(1, 2, 3);
END_VAR

rResult := vcA __VCDOT vcB; // = 18

Operator __VCSQRT

The operator calculates the square root of each element in the vector.

Syntax

<vector variable> := __VCSQRT( <vector operand> );

Example of a square root

FUNCTION_BLOCK FB_SQRT
VAR
	vcA : __VECTOR[3] OF REAL := __VCSET_REAL(4, 9, 16);
	vcResult0 : __VECTOR[3] OF REAL;
END_VAR

vcResult0 := __VCSQRT(vcA);

Operator __VCMAX

The operator calculates the maximum vector of two vectors. The maximum is determined element by element.

Syntax

<vector variable> := __VCMAX( <1st vector operand>, <2nd vector operand>);

Example of a maximum vector

FUNCTION_BLOCK FB_MAX
VAR
	vcA : __VECTOR[3] OF REAL := __VCSET_REAL(3, 3, 3);
	vcB : __VECTOR[3] OF REAL := __VCSET_REAL(1, 2, 6);
	vcResult0 : __VECTOR[3] OF REAL;
END_VAR

vcResult0 := __VCMAX(vcA, vcB);

Operator __VCMIN

The operator calculates the minimum vector of two vectors. The minimum is determined element by element.

Syntax

<vector variable> := __VCMIN( <1st vector operand>, <2nd vector operand>);

Example of a minimum vector

FUNCTION_BLOCK FB_MIN
VAR
	vcA : __VECTOR[3] OF REAL := __VCSET_REAL(3, 3, 3);
	vcB : __VECTOR[3] OF REAL := __VCSET_REAL(1, 2, 6);
	vcResult0 : __VECTOR[3] OF REAL;
END_VAR

vcResult0 := __VCMIN(vcA, vcB);

Operator __VCSET_REAL

The operator sets all elements of a vector in a statement. The elements have the ‎REAL‎ data type.

Syntax

<vector variable> := __VCSET_REAL( <first literal>, ( < next literal> )+ ) ;
( ... )+ // number of elements have to match

Example

FUNCTION_BLOCK FB_SET
VAR
	vcA : __VECTOR[3] OF REAL := __VCSET_REAL(3, 3, 3);
	vcB : __VECTOR[3] OF REAL := __VCSET_REAL(1, 2, 3);
END_VAR

vcA := __VCSET_REAL(4, 4, 4);
vcB := __VCSET_REAL(1.1, 2.2, 3.3);

Operator __VCSET_LREAL

The operator sets all elements of a vector at once in a statement. The elements have the ‎LREAL‎ data type.

They can be used wherever variables are valid, such as in assignments in implementations or as parameters in function calls.

Syntax

<vector variable> := __VCSET_LREAL( <first literal>, ( < next literal> )+ ) ;
( ... )+ // number of elements have to match

Example

FUNCTION_BLOCK FB_SET
VAR
	vclA : __VECTOR[3] OF LREAL := __VCSET_LREAL(3, 3, 3);
	vclB : __VECTOR[3] OF LREAL := __VCSET_LREAL(1, 2, 3);
END_VAR

vclA := __VCSET_LREAL(-1.7976931348623158E+308, 0.0, 1.7976931348623158E+308);
vclB := __VCSET_LREAL(-1.7976931348623158E+308, 0.0, 1.7976931348623158E+308);

Operator __VCLOAD_REAL

The operator interprets any arbitrary memory area as a vector. This is helpful for connecting vector variables to existing code. The operator requires 2 parameters. The first parameter indicates the number of vector elements. The second parameter is a pointer to the ‎REAL‎ data.

Syntax

<vector variable> := __VCLOAD_REAL( <vector size>, <pointer to data of type REAL> ) ;
<vector size> : 2 | 3 | 4 | 5| 6 | 7| 8

Example of vectorization

FUNCTION_BLOCK FB_LOAD
VAR_INPUT
END_VAR
VAR_OUTPUT
END_VAR
VAR
	rData0 : REAL := 1.234;
	rData1: REAL := 5.678;
	rData2 : REAL := 9.123;
	pData: POINTER TO REAL := ADR(rData0);

	vcA : __VECTOR[3] OF REAL := __VCSET_REAL(3, 3, 3);
END_VAR

vcA := __VCLOAD_REAL(3, pData);

Operator __VCLOAD_LREAL

The operator interprets any arbitrary memory area as a vector. This is helpful for connecting vector variables to existing code. The operator requires 2 parameters. The first parameter indicates the number of vector elements. The second parameter is a pointer to the ‎LREAL‎ data.

Syntax

<vector variable> := __VCLOAD_REAL( <vector size>, <pointer to data of type LREAL> );
<number of vector elements> : 1 | 2 | 3 | 4 | 5| 6 | 7| 8

Example of vectorization

FUNCTION_BLOCK FB_LOAD
VAR_INPUT
END_VAR
VAR_OUTPUT
END_VAR
VAR
	lrData0 : LREAL := -1.7976931348623158E+308;
	lrData1: LREAL := 1.6E+308;
	lrData2 : LREAL := 1.7E+308;
	lrData3 : LREAL := -1.6E+308;
	plData: POINTER TO LREAL := ADR(lrData0);

	vclA : __VECTOR[4] OF LREAL := __VCSET_LREAL(4, 4, 4, 4);
END_VAR
vclA := __VCLOAD_LREAL(4, plData);

Operator __VCSTORE

The operator saves/copies the contents of the vector to the specified memory address. The number and the types of elements are automatically applied from the vector variables.

Syntax

__VCSTORE( <pointer to data>, <vector variable> );

Example of storage

FUNCTION_BLOCK FB_STORE
VAR_INPUT
END_VAR
VAR_OUTPUT
END_VAR
VAR
	rData0 : REAL := 3;
	rData1: REAL := 3;
	rData2 : REAL := 3;
	pData: POINTER TO REAL := ADR(rData0);

	lrData0 : LREAL := 4;
	lrData1: LREAL := 4;
	lrData2 : LREAL := 4;
	lrData3 : LREAL := 4;
	plData: POINTER TO LREAL := ADR(lrData0);


	vcA : __VECTOR[3] OF REAL := __VCSET_REAL( 1.234, 5.678, 9.123);
	vclA : __VECTOR[4] OF LREAL := __VCSET_LREAL(-1.7976931348623158E+308, 1.6E+308, 1.7E+308, -1.6E+308);
END_VAR

__VCSTORE(pData, vcA);
__VCSTORE(plData, vclA);
