TA52xx(-x) - Terminal block setsdl-permalink__symbolPermalink

Intended purpose

Removable terminal blocks are used for power supply and for I/O connectors on AC500-eCo processor modules PM50x2.

For option boards there are different removable terminal blocks in spring version.

For the AC500-eCo Basic CPUs a 3-pin terminal block for power supply and a 13-pin terminal block for I/O connectors are used.

For the AC500-eCo Standard CPUs and Pro CPUs a 3-pin terminal block for power supply, a 13-pin terminal block and a 12-pin terminal block for I/O connectors are used.

For all CPUs there is a screw and a spring variant available.

Basic CPU

Standard and Pro CPUs

Spring terminal

TA5211-TSPF-B

Screw terminal

TA5211-TSCL-B

Spring terminal

TA5212-TSPF

Screw terminal

TA5212-TSCL
TA5211-TSPF-B TA5211-TSCL-B TA5212-TSPF TA5212-TSCL

Various removable spring terminal blocks are available for option boards.

The following spare parts are available (depending on the number of pins).

Spring terminals

TA5220-SPF5

TA5220-SPF6

TA5220-SPF7

TA5220-SPF8
TA5220-SPF5 TA5220-SPF6 TA5220-SPF7 TA5220-SPF8
CAUTION

CAUTION
CAUTION
CAUTION

CAUTION

CAUTION

Risk of injury and damaging the product!

Improper installation and maintenance may result in injury and can damage the product!

  • Installation and maintenance have to be performed according to the technical rules, codes and relevant standards, e.g. EN 60204-1.

  • Read product documentation carefully before wiring. Improper wiring or wrong terminal block from other devices can damage the product!

  • Only by qualified personnel.

CAUTION

CAUTION
CAUTION
CAUTION

CAUTION

CAUTION

Risk of injury and damaging the module when using unapproved terminal blocks!

Only use terminal blocks approved by ABB to avoid injury and damage to the module.

Terminal block set for PM50x2

Terminal block set for PM50x2

Processor modules PM50x2 CPU are not delivered with terminal blocks.

Screw terminal block set:

  • TA5211-TSCL-B (1SAP187400R0001) for PM5012-x-ETH

  • TA5212-TSCL (1SAP187400R0004) for PM5032-x-ETH, PM5052-x-ETH, PM5072-T-2ETH(W), PM5082-T-2ETH

Spring terminal block set:

  • TA5211-TSPF-B (1SAP187400R0002) for PM5012-x-ETH

  • TA5212-TSPF (1SAP187400R0005) for PM5032-x-ETH, PM5052-x-ETH, PM5072-T-2ETH(W), PM5082-T-2ETH

Dimensions

3-pin terminal block for power supply

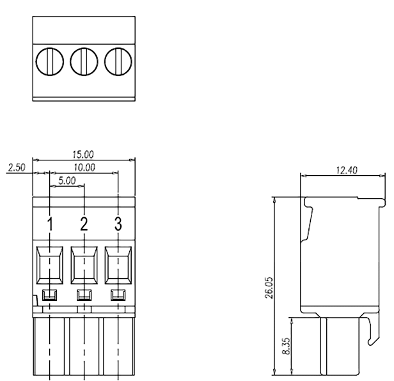

Screw terminal

3-Pin_TB_Screw_Version

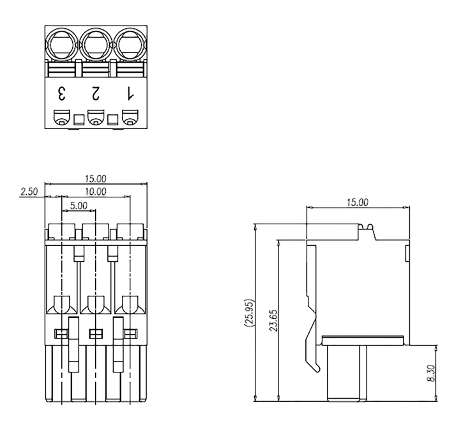

Spring terminal

3-Pin_TB_Spring_Version

13-pin terminal block for I/O connectors

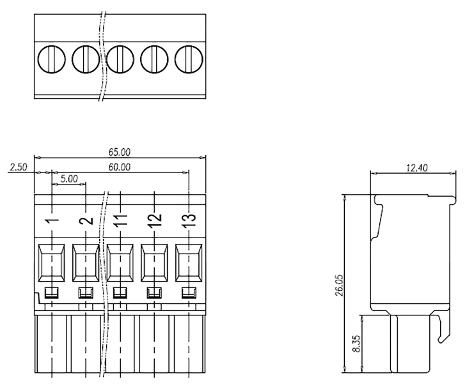

Screw terminal

13-Pin_TB_Screw_Version

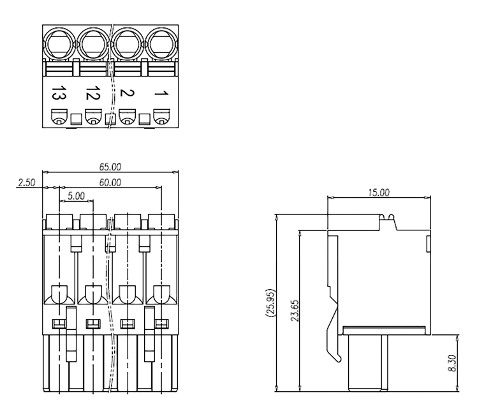

Spring terminal

13-Pin_TB_Spring_Version

12-pin terminal block for I/O connectors

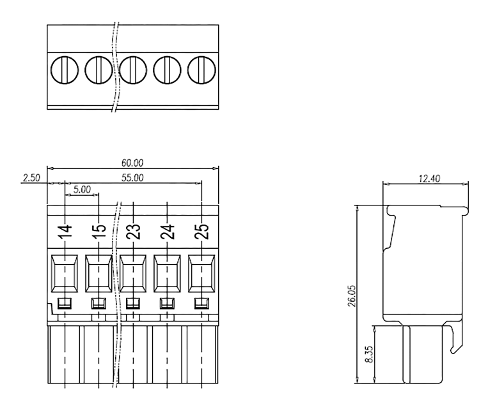

Screw terminal

12-Pin_TB_Screw_Version

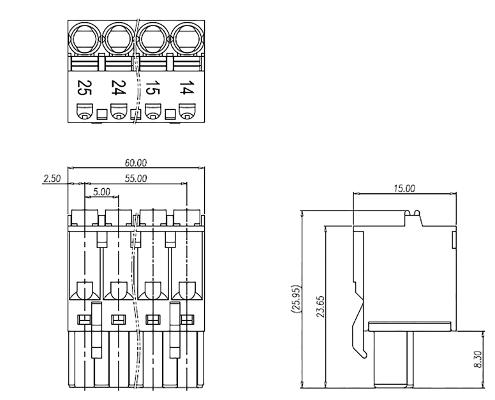

Spring terminal

12-Pin_TB_Spring_Version

x-PIN terminal blocks for option boards

Only these x-pin terminal blocks are available for the option boards.

TA5220-SPFx, with x = 5 ... 8

P-Pin_TB_Spring_Version_Option_Board

This results in these dimensions for the available spring terminal blocks.

Description

Pin

Length [mm]

Wide [mm]

Height [mm]

TA5220-SPF5

5

18.2

7.7

22.9

TA5220-SPF6

6

21.7

7.7

22.9

TA5220-SPF7

7

25.2

7.7

22.9

TA5220-SPF8

8

28.7

7.7

22.9

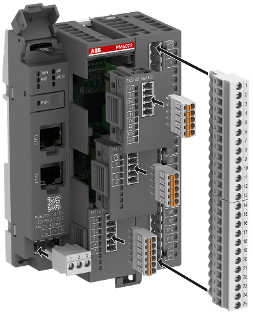

Assembly

TA52xx_Assembly

Disassembly

TA52xx_Disassembly

Technical data

Table 295: Screw terminal block for power supply

Parameter

Value

Type

TA5211-TSCL-B

Removable 3-pin terminal block:

screw front/cable side 5.00 mm pitch

TA5212-TSCL

Usage

Power supply for AC500-eCo processor modules

Conductor cross section

Solid (copper)

0.5 mm² ... 2.5 mm²

Flexible (copper)

0.5 mm² ... 2.5 mm²

Stripped conductor end

7 mm

Fastening torque

0.5 Nm

Dimensions

3-pin terminal block

15 mm x 12.4 mm x 26.05 mm

Weight

TA5211-TSCL-B

150 g (2 terminal blocks)

TA5212-TSCL

200 g (3 terminal blocks)
Table 296: Spring terminal block for power supply

Parameter

Value

Type

TA5211-TSPF-B

Removable 3-pin terminal block:

spring front/cable front 5.00 mm pitch

TA5212-TSPF

Usage

Power supply for AC500-eCo processor modules

Conductor cross section

Solid (copper)

0.5 mm² ... 2.5 mm²

Flexible (copper)

0.5 mm² ... 2.5 mm²

Stripped conductor end

11 mm

Dimensions

3-pin terminal block

15 mm x 15 mm x 25.95 mm

Weight

TA5211-TSPF-B

150 g (2 terminal blocks)

TA5212-TSPF

200 g (3 terminal blocks)
Table 297: Screw terminal block for onboard I/Os

Parameter

Value

Type

TA5211-TSCL-B

Removable 13-pin terminal block:

screw front/cable side 5.00 mm pitch

TA5212-TSCL

Removable 13-pin and 12-pin terminal block:

screw front/cable side 5.00 mm pitch

Usage

Onboard I/Os for AC500-eCo processor modules

Conductor cross section

Solid (copper)

0.5 mm² ... 2.5 mm²

Flexible (copper)

0.5 mm² ... 2.5 mm²

Stripped conductor end

7 mm

Fastening torque

0.5 Nm

Dimensions

13-pin terminal block

65 mm x 12.4 mm x 26.05 mm

12-pin terminal block

60 mm x 12.4 mm x 26.05 mm

Weight

TA5211-TSCL-B

150 g (2 terminal blocks)

TA5212-TSCL

200 g (3 terminal blocks)
Table 298: Spring terminal block for onboard I/Os

Parameter

Value

Type

TA5211-TSPF-B

Removable 13-pin terminal block:

spring front/cable front 5.00 mm pitch

TA5212-TSPF

Removable 13-pin and 12-pin terminal block:

spring front/cable front 5.00 mm pitch

Usage

Onboard I/Os for AC500-eCo processor modules

Conductor cross section

Solid (copper)

0.5 mm² ... 2.5 mm²

Flexible (copper)

0.5 mm² ... 2.5 mm²

Stripped conductor end

11 mm

Dimensions

13-pin terminal block

65 mm x 15 mm x 25.95 mm

12-pin terminal block

60 mm x 15 mm x 25.95 mm

Weight

TA5211-TSPF-B

150 g (2 terminal blocks)

TA5212-TSPF

200 g (3 terminal blocks)
Table 299: Spring terminal block for option boards

Parameter

Value

Type

TA5220-SPF5

Removable 5-pin terminal block:

spring front, cable front 3.50 mm pitch

TA5220-SPF6

Removable 6-pin terminal block:

spring front, cable front 3.50 mm pitch

TA5220-SPF7

Removable 7-pin terminal block:

spring front, cable front 3.50 mm pitch

TA5220-SPF8

Removable 8-pin terminal block:

spring front, cable front 3.50 mm pitch

Usage

Connectors for AC500-eCo option boards

Conductor cross section

Solid (copper)

0.2 mm² ... 1.5 mm²

Flexible (copper)

0.2 mm² ... 1.5 mm²

Stripped conductor end

8 mm ... 10 mm

Dimensions

TA5220-SPF5

18.2 mm x 7.7 mm x 22.9 mm

TA5220-SPF6

21.7 mm x 7.7 mm x 22.9 mm

TA5220-SPF7

25.2 mm x 7.7 mm x 22.9 mm

TA5220-SPF8

28.7 mm x 7.7 mm x 22.9 mm

Weight

TA5220-SPF5

150 g

TA5220-SPF6

170 g

TA5220-SPF7

180 g

TA5220-SPF8

200 g

Ordering data

Table 300: Terminal block sets for AC500-eCo Basic

Part no.

Description

1SAP 187 400 R0001

TA5211-TSCL-B: screw terminal block set for AC500-eCo CPU Basic

screw front, cable side 5.00 mm pitch

  • 1 removable 3-pin terminal block for power supply

  • 1 removable 13-pin terminal block for I/O connectors

1SAP 187 400 R0002

TA5211-TSPF-B: spring terminal block set for AC500-eCo CPU Basic

spring front, cable front 5.00 mm pitch

  • 1 removable 3-pin terminal block for power supply

  • 1 removable 13-pin terminal block for I/O connectors
Table 301: Terminal block sets for AC500-eCo Standard and Pro

Part no.

Description

1SAP 187 400 R0004

TA5212-TSCL: screw terminal block set for AC500-eCo Standard and Pro CPU

screw front, cable side 5.00 mm pitch

  • 1 removable 3-pin terminal block for power supply

  • 1 removable 13-pin terminal block for I/O connectors

  • 1 removable 12-pin terminal block for I/O connectors

1SAP 187 400 R0005

TA5212-TSPF: spring terminal block set for AC500-eCo Standard and Pro CPU

spring front, cable front 5.00 mm pitch

  • 1 removable 3-pin terminal block for power supply

  • 1 removable 13-pin terminal block for I/O connectors

  • 1 removable 12-pin terminal block for I/O connectors
Table 302: Spare parts

Part no.

Description

1SAP 187 400 R0012

TA5220-SPF5: spring terminal block, removable, 5-pin, spring front, cable front, 6 pieces per packing unit

1SAP 187 400 R0013

TA5220-SPF6: spring terminal block, removable, 6-pin, spring front, cable front, 6 pieces per packing unit

1SAP 187 400 R0014

TA5220-SPF7: spring terminal block, removable, 7-pin, spring front, cable front, 6 pieces per packing unit

1SAP 187 400 R0015

TA5220-SPF8: spring terminal block, removable, 8-pin, spring front, cable front, 6 pieces per packing unit
