Statistics

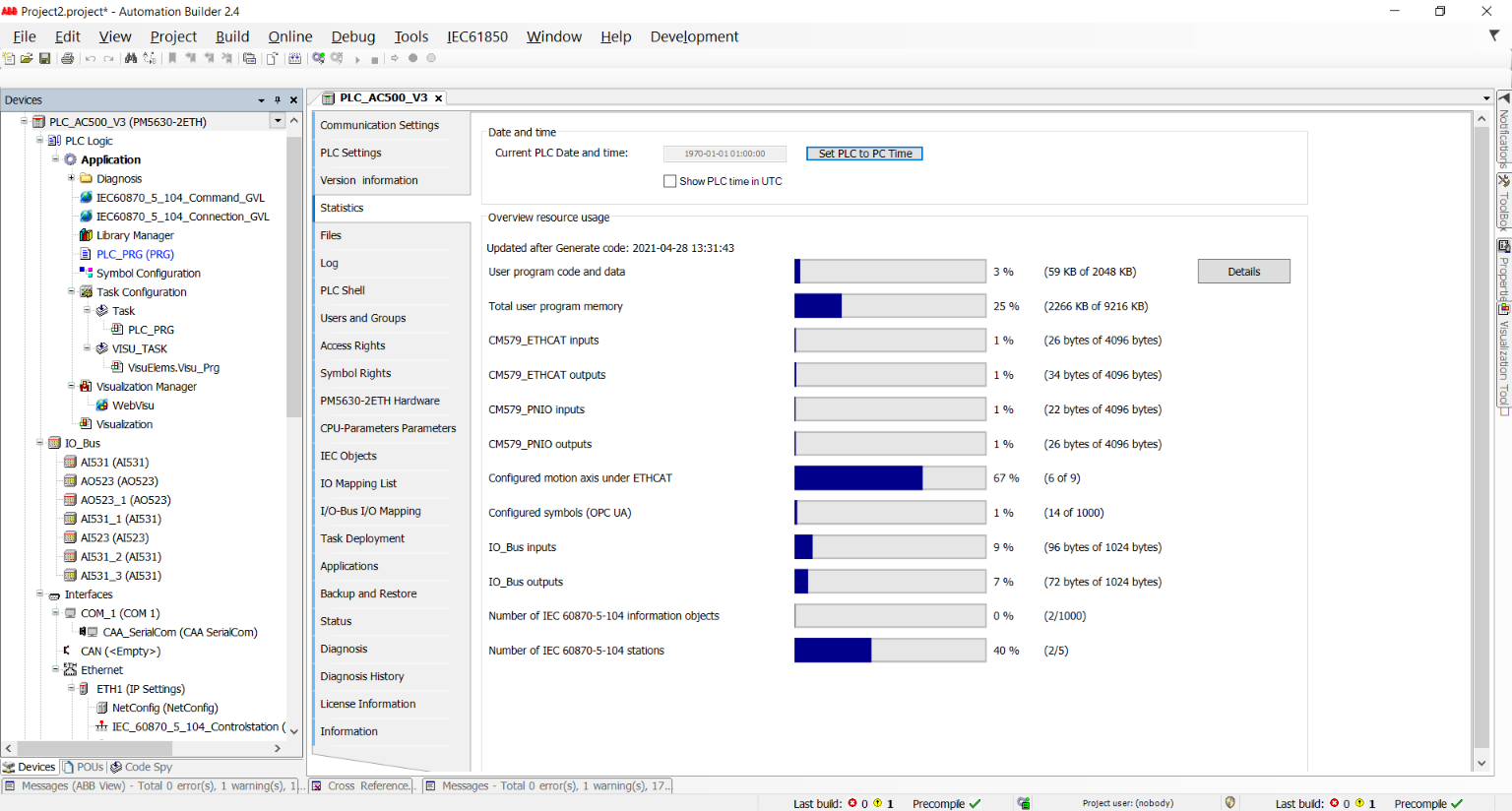

Statistic_overview1

The “Statistics” tab shows the following information:

  • Date and time: The actual date and time of the PLC is shown. It can be set or synchronized with the date/time of the PC via “Set PLC Date & Time” button.

  • Overview resource usage: This tab shows all the required information (it is collected at latest when the command “Generate Code” is executed, some of the information is not available before then.)

    For the limitation “User program code and data” a [Details] button will be available. Clicking this button will open a modal window showing a more detailed view of the memory usage.
