Flow control is used in applications where continuous flow distribution to one or more target tanks or reservoirs is needed.

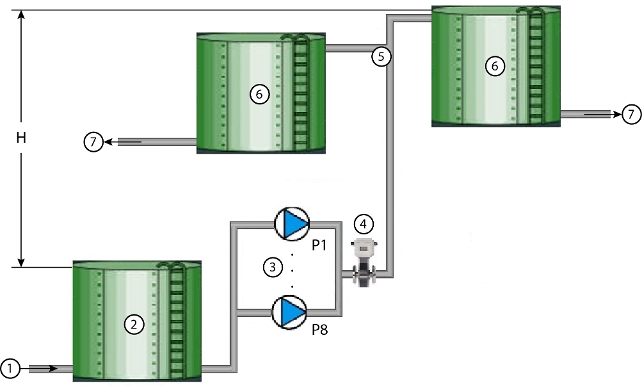

A typical flow control application diagram is shown below.
- 1
-
From supply station
- 2
-
Suction tank
- 3
-
Parallel operating pumps P1 ... P8
- 4
-
Flow setpoint, discharge pressure
- 5
-
Water distribution network
- 6
-
Target tank/Reservoir
- 7
-
To next station or distribution network
- H
-
Water head between the levels in the suction tank and target tank
